HIROSE ELECTRIC (HRS) SR30 series, KMC series, HR10A series

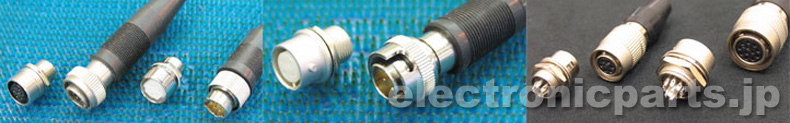

SR30 series, KMC series, HR10A series
SR30 series, KMC series, HR10A series product list
SR30 series (Small and lightweight (multipin) interface) price list
| Model number | Number of contacts | Contact shape, Shell shape | Price: JP yen |
|---|---|---|---|
| SR30-10PE-4P(71) | 4 | Male Plug | 580 |
| SR30-10R-4S(71) | 4 | Female Receptacle | 445 |
| SR30-10PE-6P(74) | 6 | Male Plug | 735 |
| SR30-10R-6S(71) | 6 | Female Receptacle | 575 |
| SR30-10PF-7P(71) | 7 | Male Plug | 535 |
| SR30-10R-7S(71) | 7 | Female Receptacle | 470 |
KMC series product list
KMC series (Bayonet lock coupling) price list
| Model number | Number of contacts | Contact shape, Shell shape | Price: JP yen |
|---|---|---|---|
| KMC-9BPD-4P(71) | 4 | Male Plug | 1690 |
| KMC-9BRD-4S(75) | 4 | Female Receptacle | 850 |
HR10A series product list
HR10A series (High performance miniature circular connectors, Pushpull lock) price list
| Model number | Shell size | Number of contacts | Contact shape, Shell shape | Price: JP yen |
|---|---|---|---|---|
| HR10A-7P-4P(73) | 7 | 4 | Male Plug | 880 |
| HR10A-7P-4S(73) | 7 | 4 | Feale Plug | 860 |
| HR10A-7R-4P(73) | 7 | 4 | Male Receptacle | 425 |
| HR10A-7R-4S(73) | 7 | 4 | Feale Receptacle | 310 |
| HR10A-7J-4P(73) | 7 | 4 | Male Jack | 830 |
| HR10A-7J-4S(73) | 7 | 4 | Female Jack | 845 |
| HR10A-7P-6P(73) | 7 | 6 | Male Plug | 915 |
| HR10A-7P-6S(73) | 7 | 6 | Feale Plug | 700 |
| HR10A-7R-6P(73) | 7 | 6 | Male Receptacle | 460 |
| HR10A-7R-6S(73) | 7 | 6 | Feale Receptacle | 325 |
| HR10A-7J-6P(73) | 7 | 6 | Male Jack | 885 |
| HR10A-7J-6S(73) | 7 | 6 | Female Jack | 835 |
| HR10A-10P-10P(73) | 10 | 10 | Male Plug | 970 |
| HR10A-10P-10S(73) | 10 | 10 | Feale Plug | 905 |
| HR10A-10R-10P(73) | 10 | 10 | Male Receptacle | 565 |
| HR10A-10R-10S(71) | 10 | 10 | Feale Receptacle | 510 |
| HR10A-10J-10S(73) | 10 | 10 | Female Jack | 830 |
| HR10A-10P-12P(73) | 10 | 12 | Male Plug | 1180 |
| HR10A-10P-12S(73) | 10 | 12 | Feale Plug | 1185 |
| HR10A-10R-12P(73) | 10 | 12 | Male Receptacle | 565 |
| HR10A-10R-12S(71) | 10 | 12 | Feale Receptacle | 610 |
| HR10A-10J-12P(73) | 10 | 12 | Male Jack | 1305 |
| HR10A-10J-12S(73) | 10 | 12 | Female Jack | 1190 |
Please order from the e-mail, or Fax.
When ordering, please inform of the following contents.
- The name of the company name and the person in charge
- E-mail address
- Phone number
- Address
- Model number of the product of the order
- Each amount of the product ordering
(Your company predetermined format is fine.)
About payment etc.
About payment
- Payment please bank transfer.
- Other than the product price, an exchange fee, the postage are necessary.
- Please bear the transfer fee by the customer.
About shipping.
- Shipment of goods will be after payment is confirmed.
- Shipment of the product will use the EMS
as a general rule. - If you wish to Fedex or DHL, please be announced separately.
