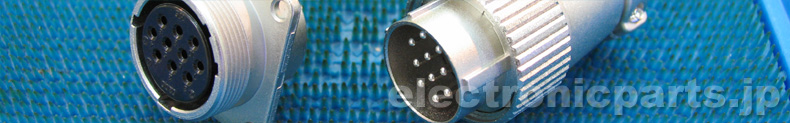

HIROSE ELECTRIC (HRS) JR series
Circular Connectors Conforming to JIS C 5432
JR series product list
Shell size: 13 price list
| Model number | Shell size | Number of contacts | Contact shape, Shell shape | Price: JP yen |
|---|---|---|---|---|
| JR13PK-3P(71) | 13 | 3 | Male Plug | Discontinued |
| JR13PK-3S(71) | 13 | 3 | Female Plug | Discontinued |
| JR13RK-3P | 13 | 3 | Male Receptacle | Discontinued |
| JR13RK-3S | 13 | 3 | Female Receptacle | Discontinued |
| JR13PK-5P(71) | 13 | 5 | Male Plug | Discontinued |
| JR13PK-5S(71) | 13 | 5 | Female Plug | Discontinued |
| JR13RK-5P | 13 | 5 | Male Receptacle | Discontinued |
| JR13RK-5S | 13 | 5 | Female Receptacle | Discontinued |
Shell size: 16 price list
| Model number | Shell size | Number of contacts | Contact shape, Shell shape | Price: JP yen |
|---|---|---|---|---|
| JR16PK-7P(71) | 16 | 7 | Male Plug | Discontinued |
| JR16PK-7S(71) | 16 | 7 | Female Plug | Discontinued |
| JR16RK-7P | 16 | 7 | Male Receptacle | Discontinued |
| JR16RK-7S | 16 | 7 | Female Receptacle | Discontinued |
| JR16PK-10P(71) | 16 | 10 | Male Plug | Discontinued |
| JR16PK-10S(71) | 16 | 10 | Female Plug | Discontinued |
| JR16RK-10P | 16 | 10 | Male Receptacle | Discontinued |
| JR16RK-10S | 16 | 10 | Female Receptacle | Discontinued |
Shell size: 21 price list
| Model number | Shell size | Number of contacts | Contact shape, Shell shape | Price: JP yen |
|---|---|---|---|---|
| JR21PK-10P(71) | 21 | 10 | Male Plug | Discontinued |
| JR21PK-10S(71) | 21 | 10 | Female Plug | Discontinued |
| JR21RK-10P | 21 | 10 | Male Receptacle | Discontinued |
| JR21RK-10S | 21 | 10 | Female Receptacle | Discontinued |
| JR21PK-16P(71) | 21 | 16 | Male Plug | Discontinued |
| JR21PK-16S(71) | 21 | 16 | Female Plug | Discontinued |
| JR21RK-16P | 21 | 16 | Male Receptacle | Discontinued |
| JR21RK-16S | 21 | 16 | Female Receptacle | Discontinued |
Shell size: 25 price list
| Model number | Shell size | Number of contacts | Contact shape, Shell shape | Price: JP yen |
|---|---|---|---|---|
| JR25PK-16P(71) | 25 | 16 | Male Plug | Discontinued |
| JR25PK-16S(71) | 25 | 16 | Female Plug | Discontinued |
| JR25RK-16P | 25 | 16 | Male Receptacle | Discontinued |
| JR25RK-16S | 25 | 16 | Female Receptacle | Discontinued |
| JR25PK-24P(71) | 25 | 24 | Male Plug | Discontinued |
| JR25PK-24S(71) | 25 | 24 | Female Plug | Discontinued |
| JR25RK-24P | 25 | 24 | Male Receptacle | Discontinued |
| JR25RK-24S | 25 | 24 | Female Receptacle | Discontinued |
Please order from the e-mail, or Fax.
When ordering, please inform of the following contents.
- The name of the company name and the person in charge
- E-mail address
- Phone number
- Address
- Model number of the product of the order
- Each amount of the product ordering
(Your company predetermined format is fine.)
About payment etc.
About payment
- Payment please bank transfer.
- Other than the product price, an exchange fee, the postage are necessary.
- Please bear the transfer fee by the customer.
About shipping.
- Shipment of goods will be after payment is confirmed.
- Shipment of the product will use the EMS
as a general rule. - If you wish to Fedex or DHL, please be announced separately.
